直流轴流风扇 JD4020

直流轴流风扇 JD4020

 详情说明

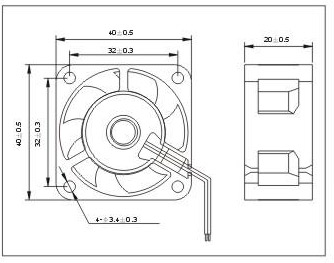

SIZE:
40×40×20mm(1.57"×1.57"×0.79")
CONSTRUCTION:
PBT+30%gful94v0
OPERATING LIFE:
50000 hours
OPERATING TEMPERATURE:
-10℃to+70℃
STORAGE TEMPERATURE:
-40℃to+70℃
INSULATION RESISTANCE:
500meg Ohm min.at 500VDC between housing and lead wire
DIELECTRIC STRENGTH:
1500VAC 60 seconds between housing and lead wire
FUNCTION:
auto-restart option
Specifications
MODEL NO. BEARING RATED START OPERATING RATED RATED SPEED AIR STATIC NOISE
VOLTAGE VOLTAGE VOLTAGE CURRENT POWER FLOW PRESSURE
VDC V V A W R.P.M CFM M3/MIN mmAq INH2O db(A)
JD402005HBP Ball 5 3.5 4.25~5.75 0.35 1.75 7000 8.53 0.24 5.31 0.21 31
JD402005MBP Ball 5 3.5 4.25~5.75 0.28 1.40 6000 7.09 0.20 3.91 0.15 26
JD402005LBP Ball 5 3.5 4.25~5.75 0.23 1.15 5000 6.00 0.17 2.80 0.11 22
JD402012HBP Ball 12 6 10.2~13.8 0.18 2.16 7000 8.53 0.24 5.31 0.21 31
JD402012MBP Ball 12 6 10.2~13.8 0.15 1.80 6000 7.09 0.20 3.91 0.15 26
JD402012LBP Ball 12 6 10.2~13.8 0.12 1.44 5000 6.00 0.17 2.80 0.11 22
JD402024HBP Ball 24 12 20.4~27.6 0.1 6 3.84 7000 8.53 0.24 5.31 0.21 31
JD402024MBP Ball 24 12 20.4~27.6 0.13 3.12 6000 7.09 0.20 3.91 0.15 26
JD402024LBP Ball 24 12 20.4~27.6 0.10 2.40 5000 6.00 0.17 2.80 0.11 22
以上参数供参考,电压,转速,功能均可依照客人要求定制。欢迎合作!
